Universal Dimensions Testing Equipment
A semi-automatic instrument for determining the dimensional characteristics of tiles including length,,orthogonality, flatness, warping, straightness of sides,
and curvature/bending ) to ISO 10545-2

The universal dimensions testing equipment can be supplied in a variety of sizes to suit most applications.
The measuring takes place by comparing readings on reference digital gauges between a certified calibration plate and the test sample.
The instrument has ball races, which run on special linear guides placed on the various axes which ensures precise positioning of the comparators and the supporting sleeves.
Appropriate reference marks that rely on millimeter scales, allow the instrument to be configured in a simple and intuitive way for any sample size within the range of the particular model chosen.

The instrument is supplied with a laptop and operating system together with retrieval software for acquiring and analyzing data as specified within the ISO 10545-2 standards.

General features:

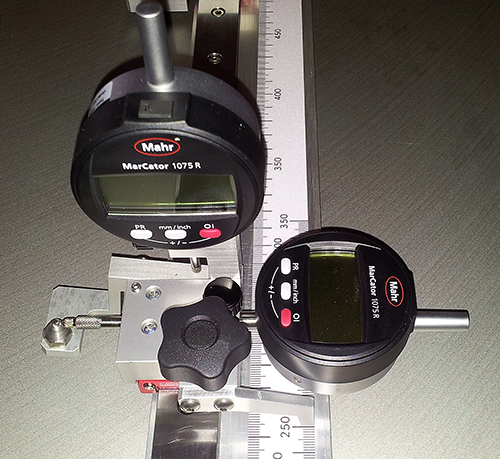

* Digital gauge, accuracy 1/100 mm.
* Measuring dimensions: from 80 x 80 up to 1300 x 1300 mm(depending on models).
* Measuring thickness:from 3 up to 15 mm.

Supplied with:
6 digital gauges 1/100 mm, 6 USB cables, 1 USB hub supporting 7 inputs,
1 USB connection cable to PC,
Laptop with O.S. and data CEN/04 software pre-installed and tested,
3 lifting and autostop cables for side comparators,
Set of supports for tile thickness from 3 up to 15 mm.

To comply with ISO10545-2 you will need to have CALIBRATION TILES of appropriate dimensions - see separate page

Tile Dimension testing apparatus ISO10545-2/DDS/700/D (bench type)
To suit tile sizes between 80 x 80 and 700 x 700 mm.
Overall dimensions 890 x 920 x 180 mm.
Net Weight 51 Kg.

ISO10545-2/DDS/1000/D (Bench or floor support type)
To suit tile sizes between 80 x 80 and 1000 x 1000 mm.
Overall dimensions 1190 x 1220 x 900 mm.
Net Weight 102 Kg.

ISO10545-2/DDS/1300/D (floor support type)
To suit tile sizes between 80 x 80 and 1300 x 1300 mm.
Overall dimensions 1490 x 1520 x 900 mm.
Net Weight 122 Kg.

These instruments can also be supplied without the software and computer. In this case readings are taken manually
ISO10545-2/DDS/700/E (bench type)
Suitable for tiles of sizes between 80 x 80 and 700 x 700 mm.
Overall dimensions 890 x 920 x 180 mm.
Net Weight 50 Kg.

ISO10545-2/DDS/1000/E (floor/bench support type)
Suitable for tile sizes between 80 x 80 and 1000 x 1000 mm.
Overall dimensions 1190 x 1220 x 900 mm.
Net Weight 100 Kg.

ISO10545-2/DDS/1300/E (floor support type)
Suitable for tile sizes between 80 x 80 and 1300 x 1300 mm.
Overall dimensions 1490 x 1520 x 900 mm.
Net Weight 120 Kg

Spare parts:
Floor Mounted Bench IS)10545/Bench
Digital comparator ISO10545-2/DDR/Gauge
USB cable for comparator ISO10545-2/DDR/UCAB
